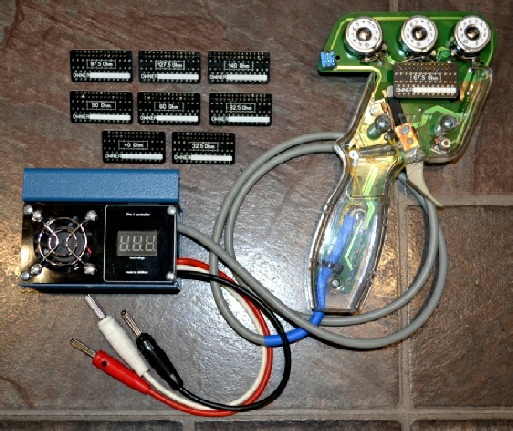

A great new controller from the Master Craftsman! Ideal for scale racing and anything up to OG12. The Pro 1 has all the features of a Pro controller with voltage readout, adjustable sensitivity, adjustable brakes, adjustable choke, blast relay, fan cooling and 9 piece chip set from 32.5ohm - 140 ohm.
Price £ 320.00
UK 3 pin adaptor £10.25
Or ISRA adaptor £10.25
- Solid construction.
- Twin Transistor / Twin Fan.
- Suitable for all types of slot car from scale to G7 wing car and Eurosport.
- A range of chips for all types of car.
- Adjustable brakes and sensitivity.
- Voltage reduction control.
- Blast relay.
- Volt Meter.
- Integral hanging bracket for secure location on track barrier.
- Complete UK service and technical backup
Usually available within 2-3 weeks of order.
- New Difalco handle and trigger assembly.
- Handle colour may be available in Clear, Blue, or metallic (shown). Subject to stock availability
High Quality “wired” UK or ISRA plug adaptor kits are available @ £10.25
Email us at firstname.lastname@example.org
A range of 3 controllers to suit different applications and price points. Carsteen controllers come fitted with colour coded 4mm plugs which fit our adaptors.
Proven to be very reliable in service, these controllers are available to order (generally 10-14 working days from order).
Please check the details below and feel free to download the PDF files on the products for further information.

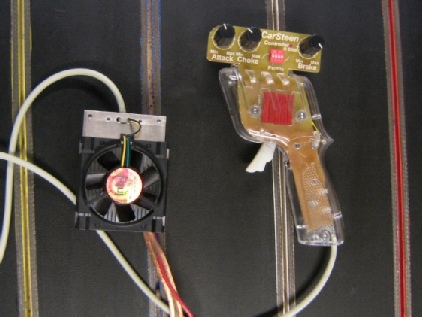

CarSteen Model CS 1.0:
Continuously adjustable sensitivity for everything from HO to JK Hawk / S16D Cars (0.4V-4V)
Output impedance less than 10 milliohms. Continuously adjustable choke: 0-3V (0-40 feet)
Continuously adjustable brake from 0.1 to more than 10 ohms. Max brake current 150A peak,
2A continuously. Brake power handling: 100W.
Protected against faulty hook-up.
Regulated fan-cooling ensures safe temperatures even with full choke on Eurosport and wing cars.
Note: Can only be used on tracks with “positive gate”.

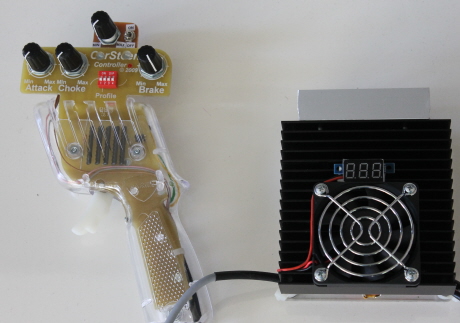

CarSteen CS-4 controller
25 steps, all equal size. Trigger response can be adjusted using profile switches to make controller softer or more aggressive.
Sensitivity can be adjusted from 0.4V to more than 6V.
Current capability more than 250A. Output-resistance less than 0.008ohm.
Voltage choke can reduce output voltage more than 3V, reducing top speed.
Continually adjustable current-choke increases output resistance to as much as 0.25ohm
(<1foot to 30 feet). Choke can be switched out.
Continually adjustable brake (0.06ohm to more than 25ohm).
Ball-bearing trigger. Volt-meter to check track-voltage.
Controller protected against faulty hook-ups.
Circuit that limits influence from varying track voltage.
Note: Can only be used on tracks with “positive gate”
Note;- All Carsteen controllers are available in 10-14 working days from order to delivery. Prices may vary subject to exchange rate variations, we will confirm price with client on receipt of order. Due to short matgins on controllers we are unable to accpet payment via paypal. Please contact us at email@example.com for payment details via bank transfer or Transferwise.
Auto reset Brake Fuse, suitable for replacement on Pro controllers or controller projects.
Auto reset, 5 amp thermal magnetic circuit breaker. Ideal for protecting from controller shorts. (Hook into the brake line). When a dead short is detected in the circuit the breaker will disconnect the circuit and protect wiring. When the dead short is removed, the breaker automatically resets.
Wire Wound 4 watt replacement potentiometers for Pro Controller Voltage control and Sensitivity.
2.5 v- 30v DC range
Size - 24mm x 11mm x 10mm deep
Blue LED display
2 wire connection on 190mm fly leads. Red + , Black Neg.

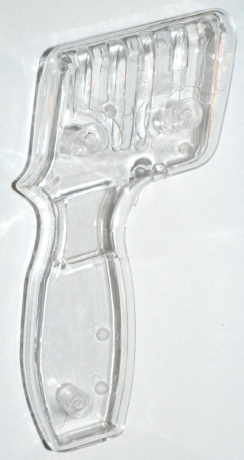

JK Products, Lexan controller handle.
Ideal as a replacement for any controller original fitted with a Red Fox type handle. This handle is moulded from genuine lexan and is tougher and smoother.
Adjustable Step Down Voltage limiter circuit board.
Use to limit maximum voltage to controller cooling fans
Replacement schottky diode for Pro Controllers
Diode Brake Kit. Get roll on brakes with this easy to install Diode brake kit. Suitable for all types of slot car from HO the Eurosport. Also gives improved braking adjustment for lower powered slot cars like Scalextric.
The kit comes complete with compact, high quality 10 way switch with silver plated contacts and 8 diodes, complete with instruction sheet. Suitable for retrofitting to all non PWM controllers. £19.75
Replacement switch for Rapid series ps1525s power supplies and other equipment.
Inline fuse holder. Takes 30mm standard fuses. Ideal for using in Power supply live wires to protect overloads and also brake lines on controllers.
Colour Coded DOLPHIN CLIPS
Specially for our American clients who are sick of using crappy Croc clips! These dolphin clips get an infinitely better grip on the terminal posts, plus they are totally solid insulated so no more creeping rubber insulation. Better, more positive grip and no Shorts! 4mm euro connectors plug straight in! No cutting or soldering! What more could you ask for! £30,00 per set of 3
COLOUR CODING FOR ALL
RED - brake
WHITE - power
BLACK - track braid (power to the track from controller)
