Many Thanks go to Mike Swiss for much of the descriptive text and photographs on this page, so in Mike’s words here is a detailed description of what it does and how it works. (Click photos for larger images).

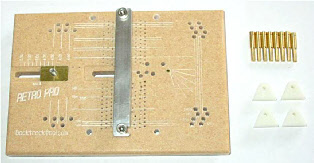

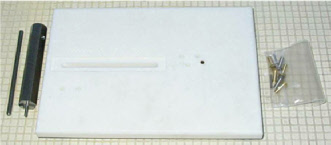

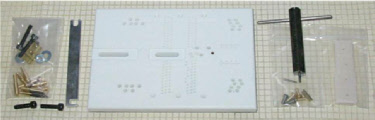

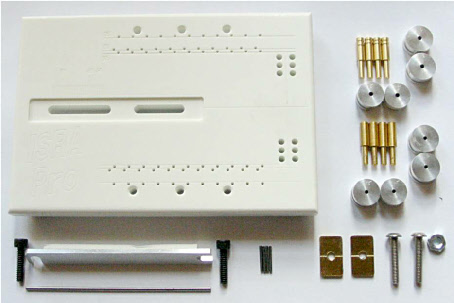

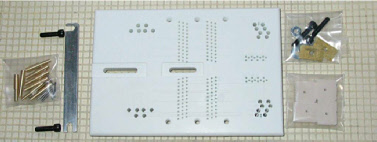

For a start, here's the bare block. It has width adjustment holes practically the width of the block at .032" increments.
This will allow you to build your chassis at any width, centered to the guide post, in .063" increments, from .500" - 3.375". You can of course also build in that width range, non-centered, in .032" increments.
This will allow you to build your chassis at any width, centered to the guide post, in .063" increments, from .500" - 3.375". You can of course also build in that width range, non-centered, in .032" increments.
While this jig has scribed angle references to facilitate doing various simple single bends,
it's main purpose is to allow you to bend precise .063 & .078 wire "U" shaped wire forms
for the WRP/BP/Warmack .925 wide & both the .750 & 1.00 wide JK brackets
and repeatable length Jail Door rails

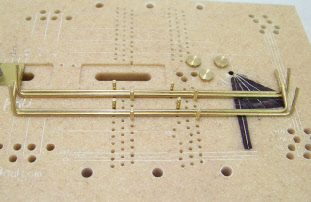

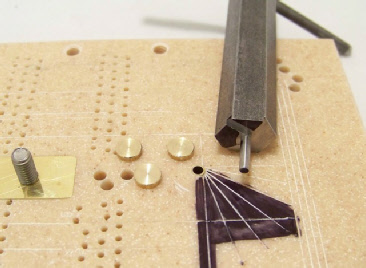

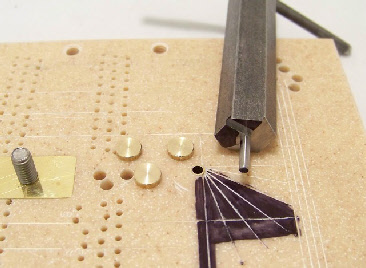

Below shows the the permanent bending pin(bottom) and the two .063 bending pins(top).
Also shown is the "T" handled bender, notched for both .063 & .078 rails and the bender pivot hole
with replaceable brass bushing(Chicagoland Rcwy. precut gear reducer sleeve)
it's main purpose is to allow you to bend precise .063 & .078 wire "U" shaped wire forms
for the WRP/BP/Warmack .925 wide & both the .750 & 1.00 wide JK brackets
and repeatable length Jail Door rails
Below shows the the permanent bending pin(bottom) and the two .063 bending pins(top).
Also shown is the "T" handled bender, notched for both .063 & .078 rails and the bender pivot hole
with replaceable brass bushing(Chicagoland Rcwy. precut gear reducer sleeve)

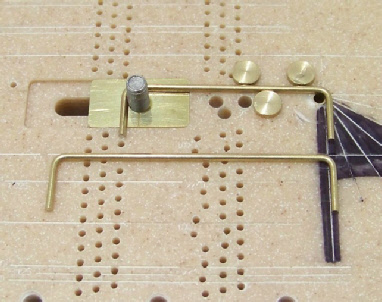

Below shows a pc. of .063 piano wire fitting snuggly between the 3 main bending pins on the right,
the 2 guide pivots and the .063 "top capture" pin between them.
The hole .210 to the left of that .063 capture pin is .015 higher to accommodate .078 wire.
the 2 guide pivots and the .063 "top capture" pin between them.
The hole .210 to the left of that .063 capture pin is .015 higher to accommodate .078 wire.

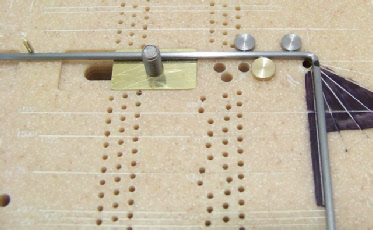

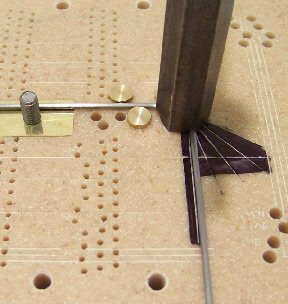

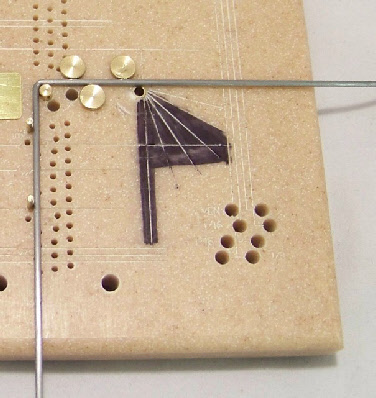

Starting with the bender notch on the right at approx. 3 O'clock, rotate the bender clockwise.
With "springback", you'll have to go past the 90º line a bit to get your perfect perpenducular bend.
The notched slot in the bender allows you to "go in reverse" a bit if you overbend the wire.
When finished, the wire should lay parallel to the reference line as shown.
With "springback", you'll have to go past the 90º line a bit to get your perfect perpenducular bend.
The notched slot in the bender allows you to "go in reverse" a bit if you overbend the wire.
When finished, the wire should lay parallel to the reference line as shown.

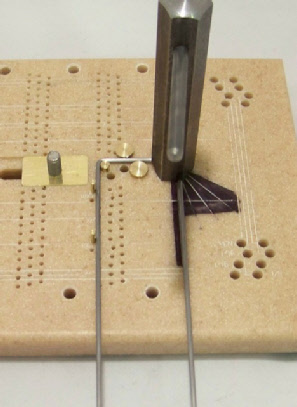

Next step is to flip your bent "L" over to the left side.
This "U" will be for the widest bracket, the JK 1.00, so insert the .125 width pin
in the hole furthest to the left of the 3 hole triangle.
The .062 capture pins go in 2 of the "wavy" set of 4 holes, also furthest to the left.
The additional/empty 2 holes slightly below are .015 to the left, for .078 wire.
This "U" will be for the widest bracket, the JK 1.00, so insert the .125 width pin
in the hole furthest to the left of the 3 hole triangle.
The .062 capture pins go in 2 of the "wavy" set of 4 holes, also furthest to the left.
The additional/empty 2 holes slightly below are .015 to the left, for .078 wire.

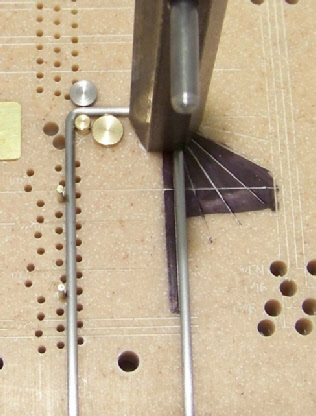

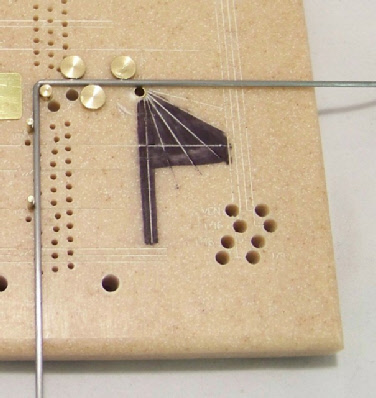

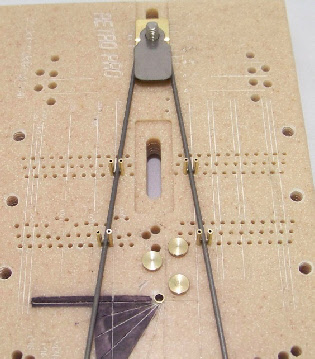

Do another 90º bend. Pull it out from between the pins and lay it back on the block to check for flatness.
This one required some minor tweaking (3 quick twists) to get it to lie flat.
Afterwards the "U" is ready to be trimmed to length.
This one required some minor tweaking (3 quick twists) to get it to lie flat.
Afterwards the "U" is ready to be trimmed to length.

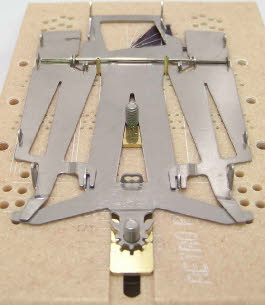

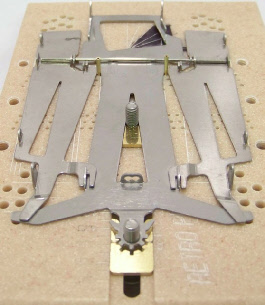

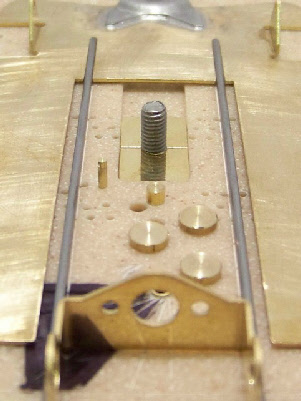

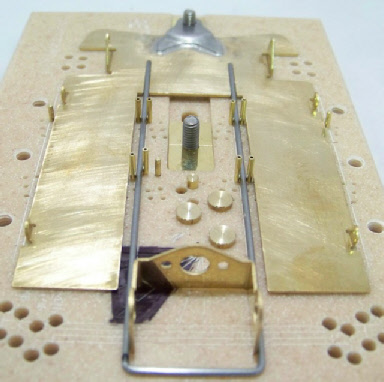

The below shows how the multitude of .063 pin holes help you locate everything nice and straight. If you look closely(especially to the left) you'll notice how the jig confirms that the JK pan flares
out past the legal 3.125 width in the back.

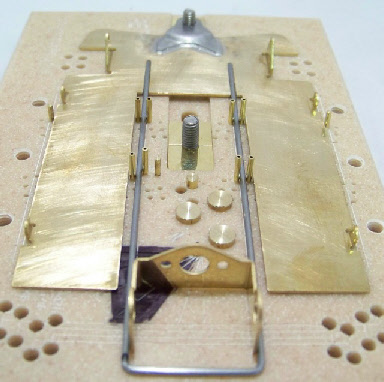

Remember if you are using this item "as is", such as in a single pc. torsion design, it must be filed
down a tiny bit, more so towards the back.
out past the legal 3.125 width in the back.
Remember if you are using this item "as is", such as in a single pc. torsion design, it must be filed
down a tiny bit, more so towards the back.
In this pic, I pulled out the pins to show how nice and straight, the rail bent on the jig, lays.
On to an example of an .078 wire form.
You must replace the the 2 top brass pins with the slightly smaller dia. ones provided.
They are easy to differentiate because they are steel.
Insert the .063 "top capture" pin to the slightly higher left hole location.
Bend your 90º angle as before.
You must replace the the 2 top brass pins with the slightly smaller dia. ones provided.
They are easy to differentiate because they are steel.
Insert the .063 "top capture" pin to the slightly higher left hole location.
Bend your 90º angle as before.
This one will be for the narrowest bracket, the JK .750 "F1", so use the .125 width pin location,
furthest to the the right.
Of course, also use the wavy set of .063 capture holes, furthest to the the right.
Since you are using .078 wire, be sure to use the 2 holes that are shifted slightly to the left in that 4 hole set.

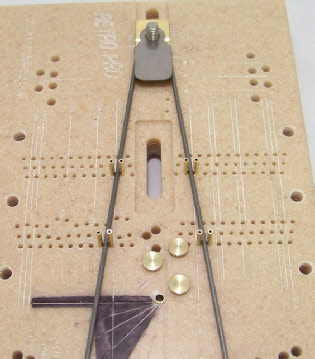

This pic also clearly shows all 3 locations of the "wavy" 4 hole capture sets.
The one for the WRP/BP bracket is the set in the middle where all 4 holes are adjacent to each other.
Note these capture holes do double-duty, lining up with hole locations in the front 3 row set, that give you your various
rail and pan holding capabilities and alignment.
furthest to the the right.
Of course, also use the wavy set of .063 capture holes, furthest to the the right.
Since you are using .078 wire, be sure to use the 2 holes that are shifted slightly to the left in that 4 hole set.
This pic also clearly shows all 3 locations of the "wavy" 4 hole capture sets.
The one for the WRP/BP bracket is the set in the middle where all 4 holes are adjacent to each other.
Note these capture holes do double-duty, lining up with hole locations in the front 3 row set, that give you your various
rail and pan holding capabilities and alignment.

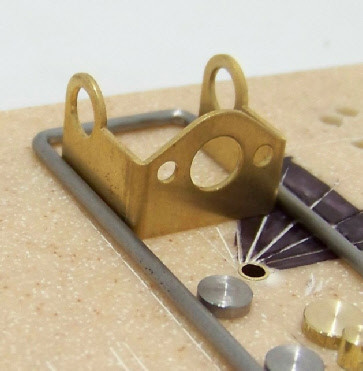

This particular one only required one quick twist to get it to lie dead flat.

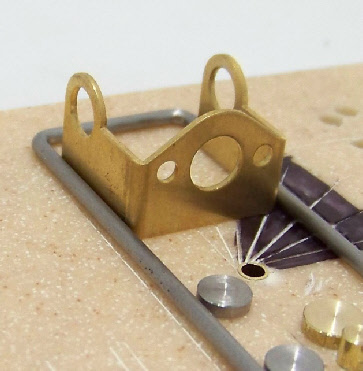

It's shown here with the bracket fitting nicely inside.
It's shown here with the bracket fitting nicely inside.

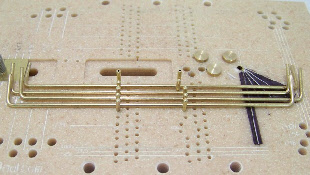

To do identical length Jail Door rails(or any other kind of the double bend rails),
just use the adjustable guide post as your width/stop pin.
You can do repeatable length rails in a range from 3.615" - 4.790".
just use the adjustable guide post as your width/stop pin.
You can do repeatable length rails in a range from 3.615" - 4.790".
I knocked these 4 rails out superquick. After trimming the uprights fairly close in length with a razor saw & a mitre box, these are the results:

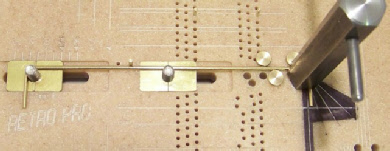

With the optional adjustable middle post, you can bend axle tube uprights in the 1.812"- 2.375" width range.
With the middle post plate being brass, a myriad of your own bending stops and fixtures can be soldered to it.
With the middle post plate being brass, a myriad of your own bending stops and fixtures can be soldered to it.
The closely spaced .063 pin design facilitates building "traditional" .063 spaced jail door chassis along with..
.....adjacent rail models.
This jig will also make keeping things symmetrical on angled rail chassis designs easier.
FYI, my bulk precut brass tubes work a bit better for the angled rail application as shown because they are about a half a thou smaller in diameter than the tight fitting, solid pins supplied with the jig.
FYI, my bulk precut brass tubes work a bit better for the angled rail application as shown because they are about a half a thou smaller in diameter than the tight fitting, solid pins supplied with the jig.

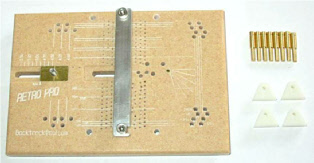

While it works nicely in concert with the wire bending feature, the original reason for the inclusion of the additional/middle guide post was to use it to slide back into the tapered slot in the JK C11 center section to both center it and hold it in place on the jig while you are installing the bearings, etc.
Also shown are the 2 pin locations in the back that also help hold the C11 square on the jig.
Also shown are the 2 pin locations in the back that also help hold the C11 square on the jig.
So now you have a fairly good idea of how useful this jig is. Providing a superb platform on which to build your favourite chassis with accuracy and ease.
