MONOPOSTO “Retro” Formula One Chassis
Designed by Ralph Parker and engineered by AB Slotsport, the “Monoposto” chassis is suitable for fitting under the majority of pre ‘60’s Formula One cars.
The chassis is designed to take the majority of “Scalex” type motors including Ninco NC2, Mabuchi S type and Falcon motors.
Wheelbase has a 6 way adjustment for length utilising the reversible, optional axle location front pillar blocks.
Assembly is simplicity itself, requiring only very simple soldering and trimming with a Dremmel.
The chassis may be built in a number of configurations and due to the axle height (designed for Scale tyre sizes of the time) the chassis may also be fitted with a 16G brass undertray for ballast and stability if required.
Best Guide flag for these chassis is the TSRF “replacement guide”, TSP1 @ £2.60
The chassis is designed to take the majority of “Scalex” type motors including Ninco NC2, Mabuchi S type and Falcon motors.
Wheelbase has a 6 way adjustment for length utilising the reversible, optional axle location front pillar blocks.
Assembly is simplicity itself, requiring only very simple soldering and trimming with a Dremmel.
The chassis may be built in a number of configurations and due to the axle height (designed for Scale tyre sizes of the time) the chassis may also be fitted with a 16G brass undertray for ballast and stability if required.
Best Guide flag for these chassis is the TSRF “replacement guide”, TSP1 @ £2.60
Prices;-
Basic chassis Kit £16.50
Chassis kit with brass axle tubes,
NSR 27t Crown Gear, 8T push on brass pinion & Falcon Motor. £29.50
Complete RTR chassis to specified
Basic chassis Kit £16.50
Chassis kit with brass axle tubes,
NSR 27t Crown Gear, 8T push on brass pinion & Falcon Motor. £29.50
Complete RTR chassis to specified

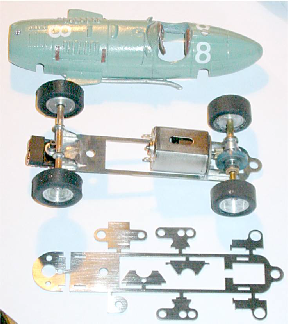

This chassis kit is suitable for many Plastic and Resin bodies (Illustrated body Mac Pinches BRM, paint by Ralph Parker)

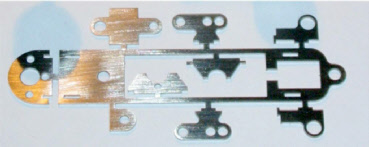

Guide flag plate
Front screw mount ref. plate
Rear screw mount ref. plate
Rear axle pillar block
Optional motor mounts
3 position Front pillar block
(reversible)
(reversible)
Front screw mount hole
Main motor mount bracket
Front Pillar block slot
BRM ready for the track!

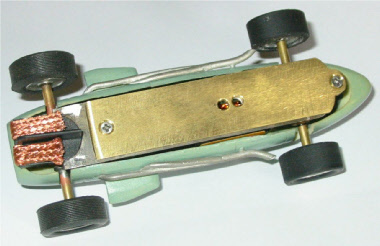

Below;- Underside with brass 16G undertray fitted for added traction on polyurethane finished wood tracks.
Below;- Underside with brass 16G undertray fitted for added traction on polyurethane finished wood tracks.
AND NOW! Monoposto Wheels!
Precision made in aluminium with 3/32 axle hole and 4/40 grub screw fixing located in the rear brake drum detail, these wheels will accept Ninco “Classic” tyres or similar sized tyres from the Custom Tyre Factory range of Silicon and NEW Urathane rubbers.
Price £6.50 per pair
The inner diameter of the hub will accept either Ninco “Classic machined down wheels as inserts or,
our clear resin “wire wheel” inserts
£1.50 per sheet of 4
Price £6.50 per pair
The inner diameter of the hub will accept either Ninco “Classic machined down wheels as inserts or,
our clear resin “wire wheel” inserts
£1.50 per sheet of 4
UTF12 NEW! Monoposto Tyres!
Fits the AB Slotsport Monoposto wheels and also Ninco Classic wheels giving an OD of approx 22mm and a width of approx 7mm. Price £4.75 per pair.
Fits the AB Slotsport Monoposto wheels and also Ninco Classic wheels giving an OD of approx 22mm and a width of approx 7mm. Price £4.75 per pair.
