HOOK UP -
The Controller is for use on positive regulated tracks only. Verify the polarity of the track prior to use, do not attempt to connect the controller to a negatively regulated track or to Drag or HO tracks.
All power leads must be connected to the correct coloured terminals, Failure to do so may cause tripping of any of a number of re-settable fuses and reduce the life of the Controller.
When connecting the power leads, Always connect the Red power lead First! The Red lead must remain connected at all times. In the event the lead is not hooked up, the Controller will supply full power and the car will take off.
OPERATION - RENEGADE CONTROLLER
The blue knob is the Sensitivity adjustment. Turn the knob counter-clockwise for less sensitivity, and clockwise for greater sensitivity.
The red knob is the Brake adjustment. Turn the knob counter-clockwise for minimum brake and clockwise for maximum brake.
Verify the Controller has power by the Blue power LED being illuminated.
Place the car on the track. While driving the car, adjust the Brake and Sensitivity to the desired settings.
The Controller is for use on positive regulated tracks only. Verify the polarity of the track prior to use, do not attempt to connect the controller to a negatively regulated track or to Drag or HO tracks.
All power leads must be connected to the correct coloured terminals, Failure to do so may cause tripping of any of a number of re-settable fuses and reduce the life of the Controller.
When connecting the power leads, Always connect the Red power lead First! The Red lead must remain connected at all times. In the event the lead is not hooked up, the Controller will supply full power and the car will take off.
OPERATION - RENEGADE CONTROLLER
The blue knob is the Sensitivity adjustment. Turn the knob counter-clockwise for less sensitivity, and clockwise for greater sensitivity.
The red knob is the Brake adjustment. Turn the knob counter-clockwise for minimum brake and clockwise for maximum brake.
Verify the Controller has power by the Blue power LED being illuminated.
Place the car on the track. While driving the car, adjust the Brake and Sensitivity to the desired settings.

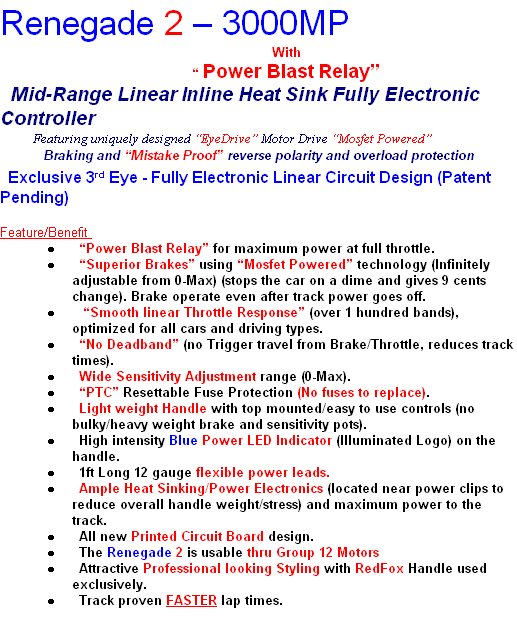

Renegade 2 – 3000MP
With
“ Power Blast Relay”
Mid-Range Linear Inline Heat Sink Fully Electronic Controller
Featuring uniquely designed “EyeDrive” Motor Drive “Mosfet Powered”
Braking and “Mistake Proof” reverse polarity and overload protection
Exclusive 3rd Eye - Fully Electronic Linear Circuit Design (Patent Pending)
Feature/Benefit
With
“ Power Blast Relay”
Mid-Range Linear Inline Heat Sink Fully Electronic Controller
Featuring uniquely designed “EyeDrive” Motor Drive “Mosfet Powered”
Braking and “Mistake Proof” reverse polarity and overload protection
Exclusive 3rd Eye - Fully Electronic Linear Circuit Design (Patent Pending)
Feature/Benefit
|
·
|
“Power Blast Relay” for maximum power at full throttle.
|
|
·
|
“Superior Brakes” using “Mosfet Powered” technology (Infinitely adjustable from 0-Max) (stops the car on a dime and gives 9 cents change). Brake operate even after track power goes off.
|
|
·
|
“Smooth linear Throttle Response” (over 1 hundred bands), optimized for all cars and driving types.
|
|
·
|
“No Deadband” (no Trigger travel from Brake/Throttle, reduces track times).
|
|
·
|
Wide Sensitivity Adjustment range (0-Max).
|
|
·
|
“PTC” Resettable Fuse Protection (No fuses to replace).
|
|
·
|
Light weight Handle with top mounted/easy to use controls (no bulky/heavy weight brake and sensitivity pots).
|
|
·
|
High intensity Blue Power LED Indicator (Illuminated Logo) on the handle.
|
|
·
|
1ft Long 12 gauge flexible power leads.
|
|
·
|

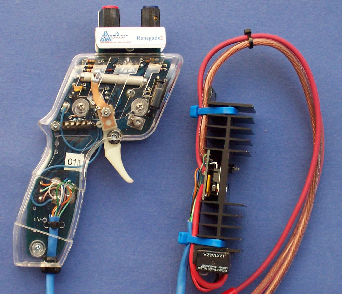

Ample Heat Sinking/Power Electronics (located near power clips to reduce overall handle weight/stress) and maximum power to the track.
|
|
·
|
All new Printed Circuit Board design.
|
|
·
|
The Renegade 2 is usable thru Group 12 Motors
|
|
·
|
Attractive Professional looking Styling with RedFox Handle used exclusively.
|
|
·
|
Track proven FASTER lap times.
|

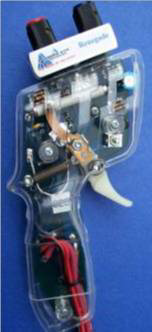

RENEGADE 2 HAND CONTROLLER
PRICE £158.00
