SCALE RACE MOTORS
On this page we detail motors suitable for “scale” type racing, replacement motors for scalex and retro scratch built cars.
The long heralded Proslot Euro Motor has arrived!
Motor dimensions;-
Height 15.50mm
Length (endbell nose to rear of can) 26.80mm
Threaded mount centres 13mm
Tech Specs;-
Motor dimensions;-
Height 15.50mm
Length (endbell nose to rear of can) 26.80mm
Threaded mount centres 13mm
Tech Specs;-
12 volts with 45° Springs : RPM - 26,100
TORQUE - 155 gm-cm, CURRENT - 280ma max.
The motor features
High precision dynamic balance.
Replaceable motor brushes & springs.
High strength magnets.
Heat treated centerless ground shaft (not piano wire).
Dual ended universal shaft for inline or sidewinder mount in any brand of car.
Direct snap-in mounting in any standard "Mabuchi" motor type application.
3 spring winds available for tuning.
Threaded motor mounting holes for screw type mount.
Endbell mounting holes in can to allow for rebuilding.
TORQUE - 155 gm-cm, CURRENT - 280ma max.
The motor features
High precision dynamic balance.
Replaceable motor brushes & springs.
High strength magnets.
Heat treated centerless ground shaft (not piano wire).
Dual ended universal shaft for inline or sidewinder mount in any brand of car.
Direct snap-in mounting in any standard "Mabuchi" motor type application.
3 spring winds available for tuning.
Threaded motor mounting holes for screw type mount.
Endbell mounting holes in can to allow for rebuilding.
Parts
PS-4013-60 replacement springs 60 degree £0.75 per pair
PS-4013-90 replacement springs 90 degree £0.75 per pair
PS-4014 replacement motor brushes £1.35 per pair or
£7.00 per pack of 6 pairs
PS-4013-60 replacement springs 60 degree £0.75 per pair
PS-4013-90 replacement springs 90 degree £0.75 per pair
PS-4014 replacement motor brushes £1.35 per pair or
£7.00 per pack of 6 pairs
The Falcon 7 from JK is the new version of the Falcon family having vastly improved magnets and balance.
Reving at around 46,000 rpm and generating good torque and brakes, this sealed motor represents great value at £7.80
Falcom 7 is THE approved motor for the Majority of Novice racing in the UK and D3 almost worldwide.
Reving at around 46,000 rpm and generating good torque and brakes, this sealed motor represents great value at £7.80
Falcom 7 is THE approved motor for the Majority of Novice racing in the UK and D3 almost worldwide.
PS-4000 Euro Motor 28,000rpm
PS-4001 Euro Motor 37,000rpm
&
PS-4002 Euro Motor 47,000rpm
All Models are the same price @ £12.95
Dimensions are the same as original
PS-4000 motor.
PS-4001 Euro Motor 37,000rpm
&
PS-4002 Euro Motor 47,000rpm
All Models are the same price @ £12.95
Dimensions are the same as original
PS-4000 motor.

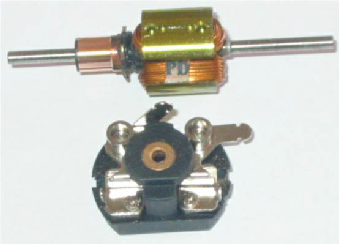

The Proslot “Puppy Dog” & Big Dog armatures have arrived!
These are Performance replacement, American Proslot made armatures for the Prolsot 4000 Euro series motors.
The Puppy Dog is an 80t/31g wind with 25 degree timing, giving the same performance as the 47K version of the Euro motor, with improved balance and reliability.
The Big Dog armature is 55t/30g for truly awesome performance
Price for either armature is £17.25
Also Available - Replacement, modified endbell (for com clearance) £3.95
These are Performance replacement, American Proslot made armatures for the Prolsot 4000 Euro series motors.
The Puppy Dog is an 80t/31g wind with 25 degree timing, giving the same performance as the 47K version of the Euro motor, with improved balance and reliability.
The Big Dog armature is 55t/30g for truly awesome performance
Price for either armature is £17.25
Also Available - Replacement, modified endbell (for com clearance) £3.95
NOW AVAILABLE;- Factory Blueprinted Euro motors!
Fitted with Golddust motor brushes, replacement endbell and choice of Puppy Dog or Big Dog Armatures £28.55
Fitted with Golddust motor brushes, replacement endbell and choice of Puppy Dog or Big Dog Armatures £28.55
THE BEARDOG MOTOR
This Ultra-Miniature motor is ideal for modellers wishing to build period Formula cars while retaining full driver detail. Mounting is by 2 x TSRF type screws. Specifications;-
Overall length (Inc. Shaft) 28.50mm
Shaft Dia. 1.5mm. Shaft length 5.85mm.
O/A width 15.5mm, O/A height 12.00mm.
Length (Can/endbell) 18.7mm.
Free Revs @ 12v - 24,300 rpm
Price £4.05
This Ultra-Miniature motor is ideal for modellers wishing to build period Formula cars while retaining full driver detail. Mounting is by 2 x TSRF type screws. Specifications;-
Overall length (Inc. Shaft) 28.50mm
Shaft Dia. 1.5mm. Shaft length 5.85mm.
O/A width 15.5mm, O/A height 12.00mm.
Length (Can/endbell) 18.7mm.
Free Revs @ 12v - 24,300 rpm
Price £4.05
Scale Auto
Micro motors avaialble in 25K (yellow) & 36K (Black can versions @ £6.25 each
Micro motors avaialble in 25K (yellow) & 36K (Black can versions @ £6.25 each
